Vacuum Pumps
Hydro Pneo Vac Technologies (HPVT), Bangalore wide range of HPVT Vacuum Pumps which includes High Vacuum Pumping System, Vacuum Turbo Pumping System, Diffusion Vacuum Pump, Air Cooled Diffusion Vacuum Pump, Diaphragm Vacuum Pump, Rotary Vacuum Pump, Rotary Vane Vacuum Pump, Dry Vacuum Pump and more. CLICK HERE → To Download Product Brochure
1. Rotary Vane Vacuum Pump
FEATURES: ∗ Direct Drive∗ Air Cooled ∗ Less Oil Charge ∗ Compact & Rugged ∗ Light Weight ∗ Gas Ballest ∗ Less Noise & Vibration ∗ Built-in Anti Suck Back and more.
AVAILABLE MODELS: HPVT 50 / HPVT 100 / HPVT 150 / HPVT 250 / HPVT 350 / HPVT 500 / HPVT 1000
Different Models Specification
| Displacement (LPM) | 100 | 150 | 250 | 500 | 1000 |
|---|---|---|---|---|---|
| M3/Hr | 6 | 9 | 15 | 30 | 60 |
| RPM | 1440 | 1440 | 1440 | 1440 | 1440 |
| Motor (HP) | 0.33 | 0.33 | 0.50 | 1.0 | 2.0 |
| Oil Capacity ( litres | 0.8 | 1.0 | 1.1 | 2.2 | 4.2 |
| Inlet Port | KF 25 | KF 25 | KF 25 | KF 40 | KF 40 |
| Ultimate Vacuum m.bar | 1 x 10−3 | 1 x 10−3 | 1 x 10−3 | 1 x 10−3 | 1 x 10−3 |

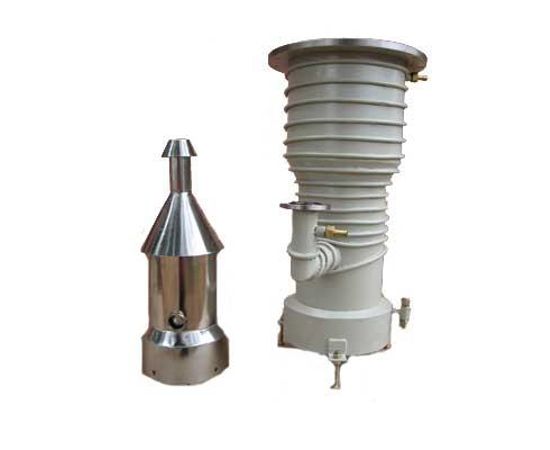

2. Diffusion Vacuum Pump
The Hydro Pneo Vac Technologies (HPVT), Bangalore Oil Diffusion / Diffstack Pumps are being manufactured in an extensive range to suit the varied needs of both industrial and laboratory users.
The HPVT Diffusion Pumps are available with Different Pumping Speed.
Pump Model |
Pumping Speed (LIT / SEC |
|---|---|
| OD - 65 | 120 |
| OD - 80 | 240 |
| OD - 114D | 280 |
| OD - 150D | 700 |
| OD - 250D | 3000 |
| OD - 350 | 6000 |

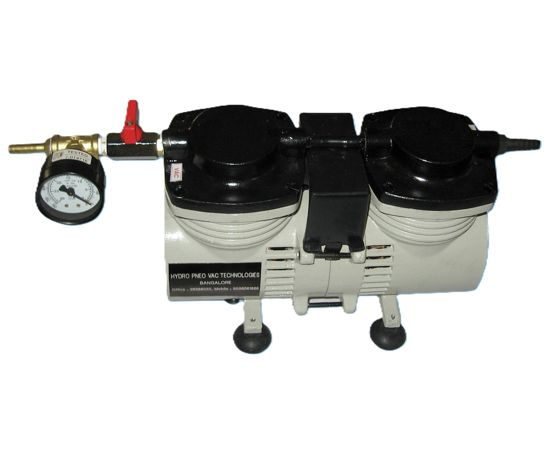

3. Diaphragm Vacuum Pump
4. Turbo Vacuum Pump
Hydro Pneo Vac Technologies
