1. Vacuum Measuring Instruments

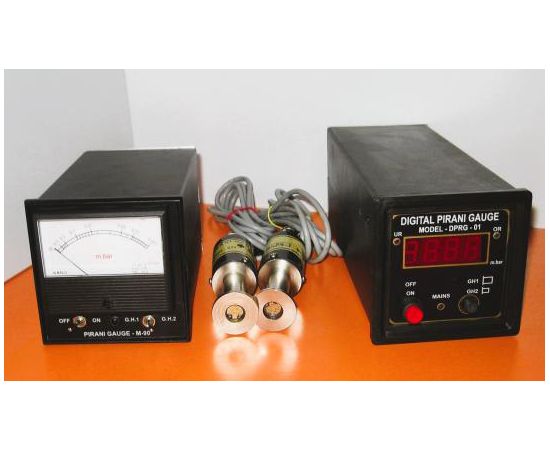

1.1. Pirani Gauge

∗ Measuring range (vacuum level): 999 to10⁻³ mbar ∗ Sensor: Single / Two ∗ Sensor port : KF-10 ∗ Main supply: 230 V. 5 Amps, 50 Hz ∗ Cable length: 2 meters

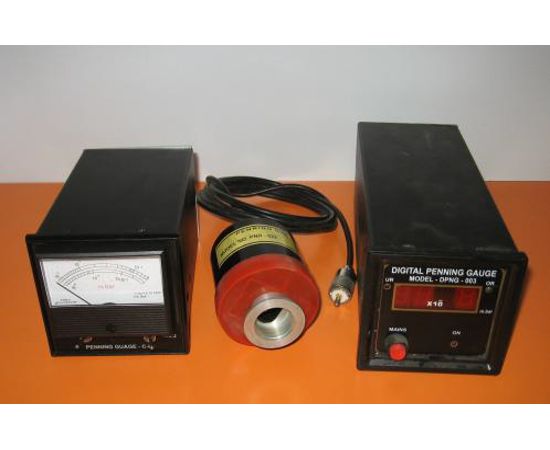

1.2. Penning Guage

∗ Measuring range (vacuum level): 10⁻³ to 10⁻⁶6 mbar mbar ∗ Sensor: One ∗ Sensor Port : KF-25 ∗ Main supply: 230 V. 5 Amps, 50 Hz ∗ Cable length: 2 meters

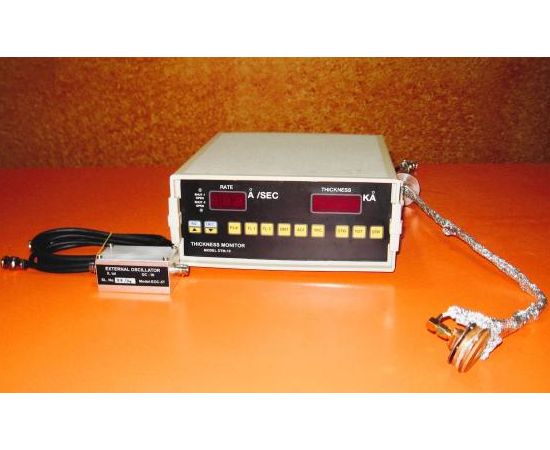

1.3. Thickness Monitor

∗ Rate Display: 3 Digit LED ∗ Auto Ranging from 0.00 to 999 Ant/sec ∗ Thickness Display :4 digit LED display ∗ Crystal Frequency: 6MHz ∗ Film Density: 0.800 to 99.99gm/cubic sec ∗ Size: 220 widths x 230 depth x Height 93

---

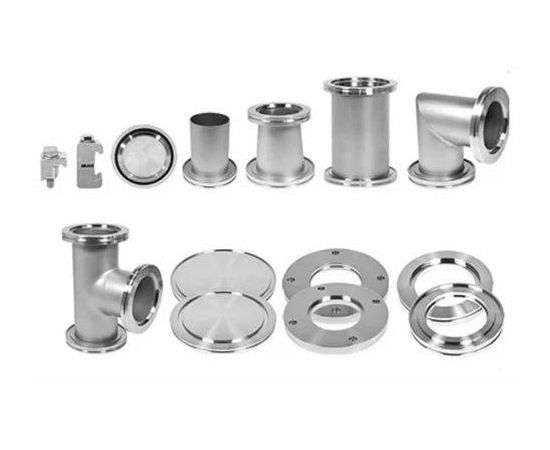

2. Vacuum Components

KF Standards sizes are: KF10, KF16, KF25, KF40, and KF50

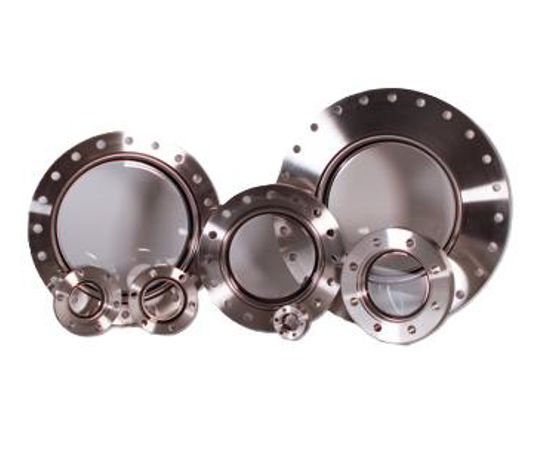

CF Standards sizes are: CF 16 TO CF 200
ISO Standards sizes are: ISO 63 TO ISO 500

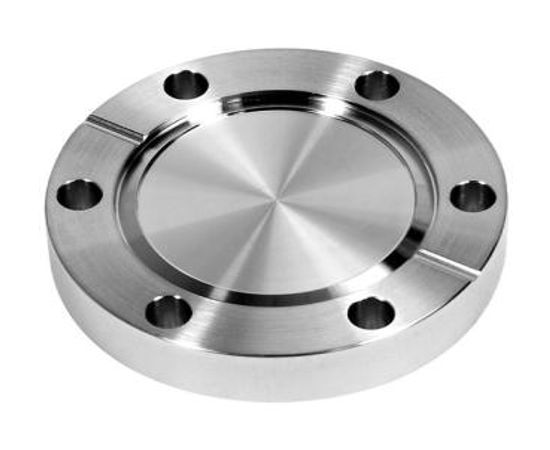

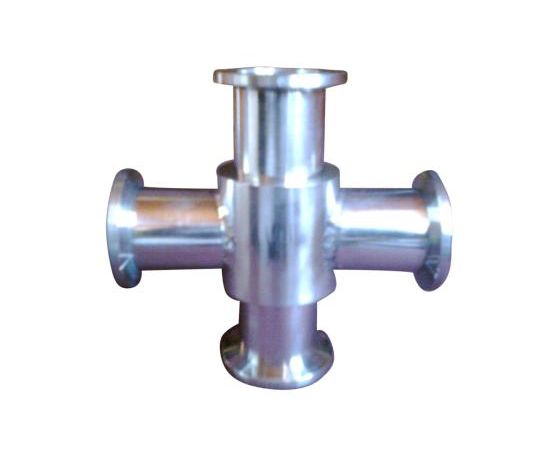

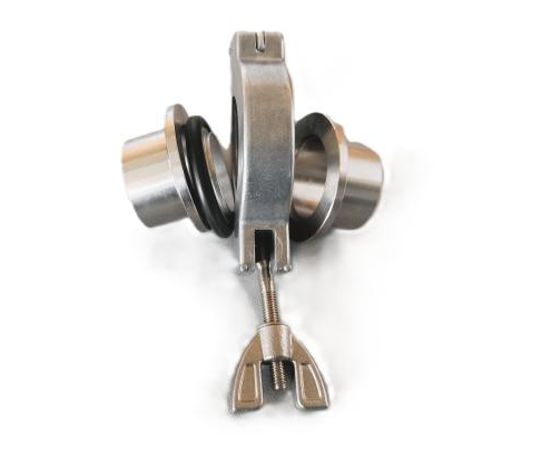

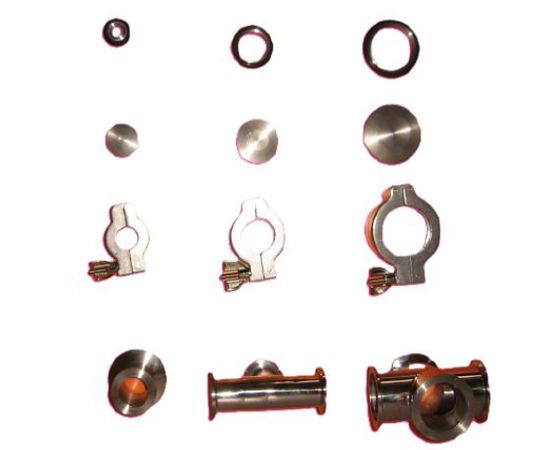

1. Stright Adapter 2. Tee 3. 4 Way Cross 4. Clamps 5. 'O' Ring Holders 6. Blank Flanges 7. Claw Clamps

---
